This cable allows you to connect to your (2015+ model year) Model S or Model X diagnostics port and access data like battery health and voltages/temperature, front and rear motor power/torque/voltage, 12V battery power/voltage, and much more.

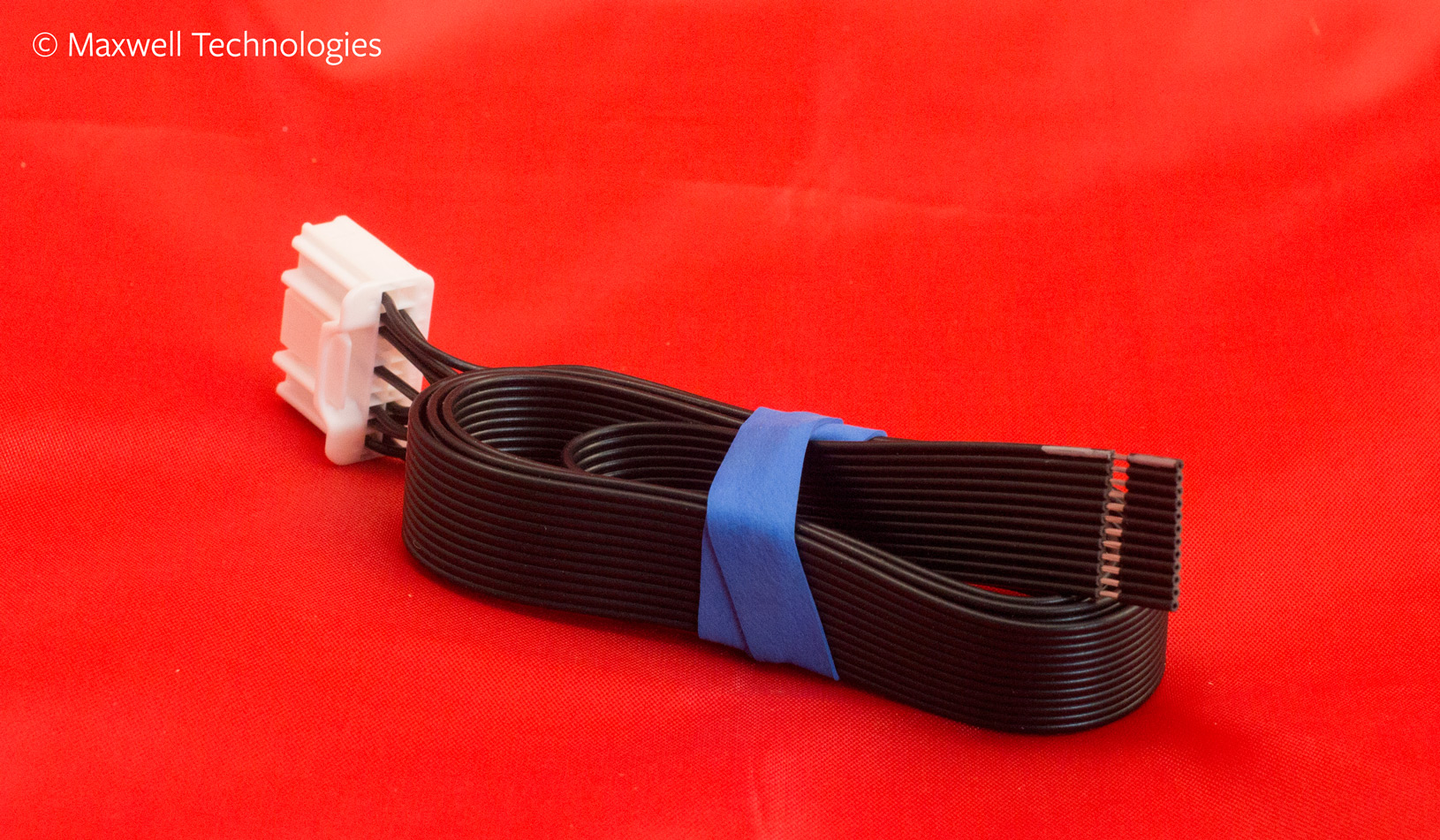

This is the cheapest and most customizable option for the hackers and tinkerers among us. Allowing you to connect whatever you want to the other end of the 1m (~3ft) long pre-stripped flat cable (specially designed to fit between the seam of the center console cubby and center display). More turn key options are linked at the bottom of this listing.
This setup is completely removable and doesn’t modify or damage the vehicle in any way. Product comes with a detailed pinout chart and instructions on how to access the diagnostic port (for either the yacht/carpet floor or those with a Tesla center console).
Datasheet: TDC Pinout 2015+ Style
Length: 1m (~3ft)
No. of Conductors: 12 (all available data lines and 12V power)
Works with: Model S/X (most 2015 or newer models, those with a blue diagnostic connector will work)
Termination Option: stripped wire (possible connectors, sold separately, included DE-9 or OBD-II plugs)
Works with: Kvaser Leaflite or similar, CANtact, Canberry, CANdue, CANdue 2, TowerTech CAN Cape, Arduino CAN shields, CANbus Triple, or similar CAN transceiver boards. NOTE: Product does not have a connector on the other end, it is the buyers responsibility to handle buying the compatible connector for a given product listed above.
