Tesla CAN Diagnostic Cable (Sept 2015 and up) – Crimped OBD-II

$30.00

Clear
SKU: N/A Categories: ,

Description

Special offer while supplies last, buy three cables at the same time (wired in any configuration) and get them for $75 (almost 10% off)

This cable allows you to connect to your (2015+ model year) Model S or Model X diagnostics port and access data like battery health and voltages/temperature, front and rear motor power/torque/voltage, 12V battery power/voltage, and much more.

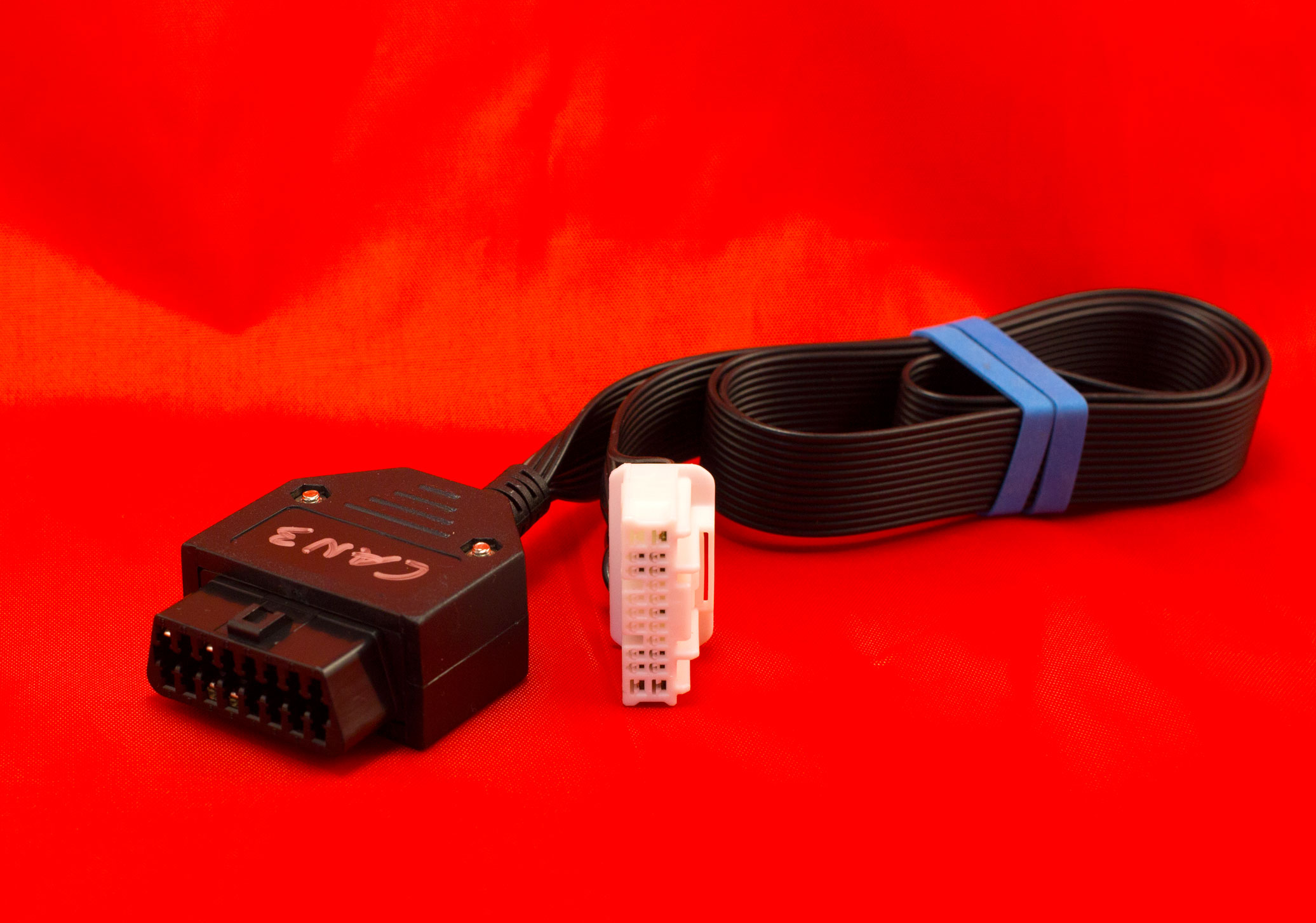

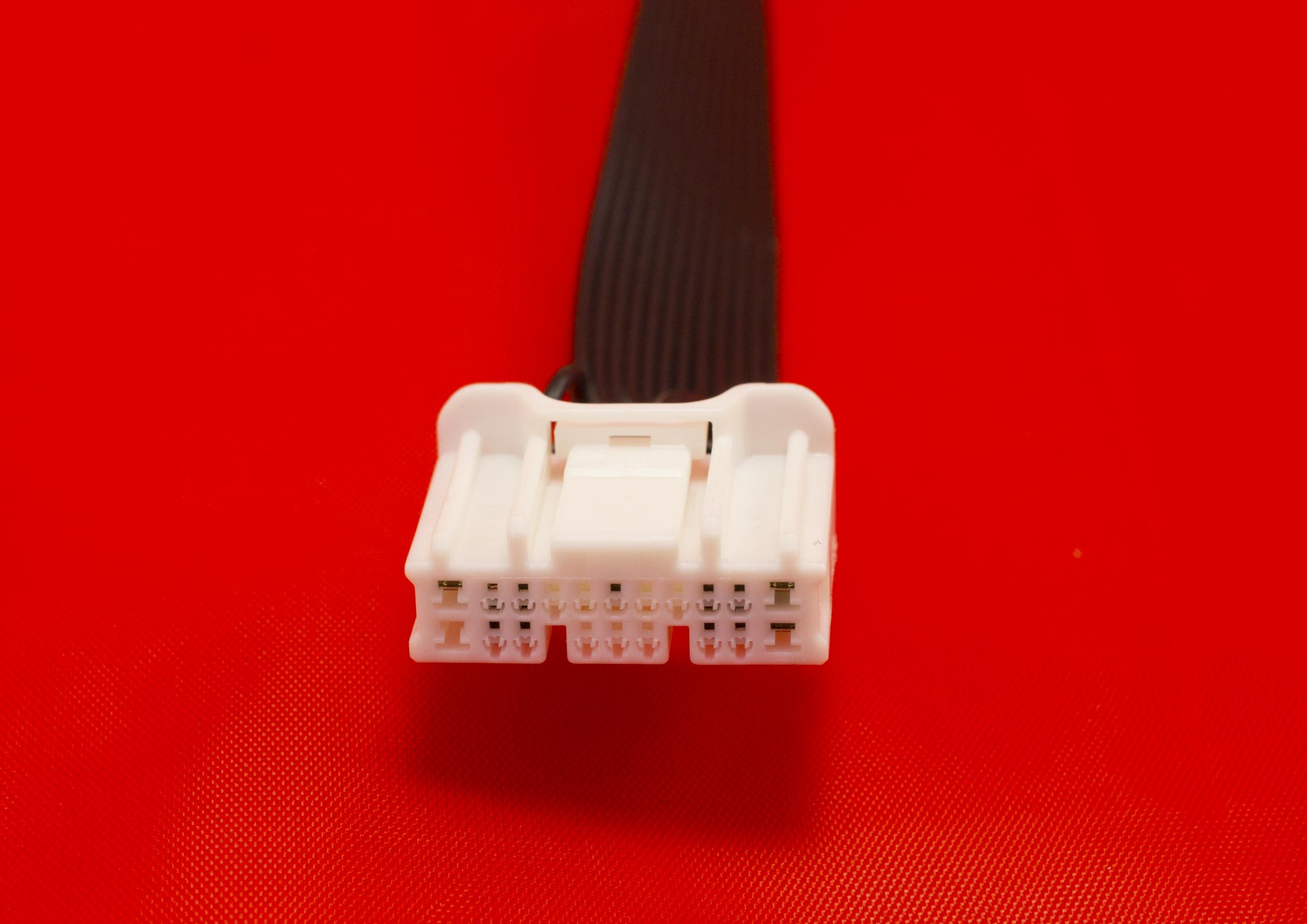

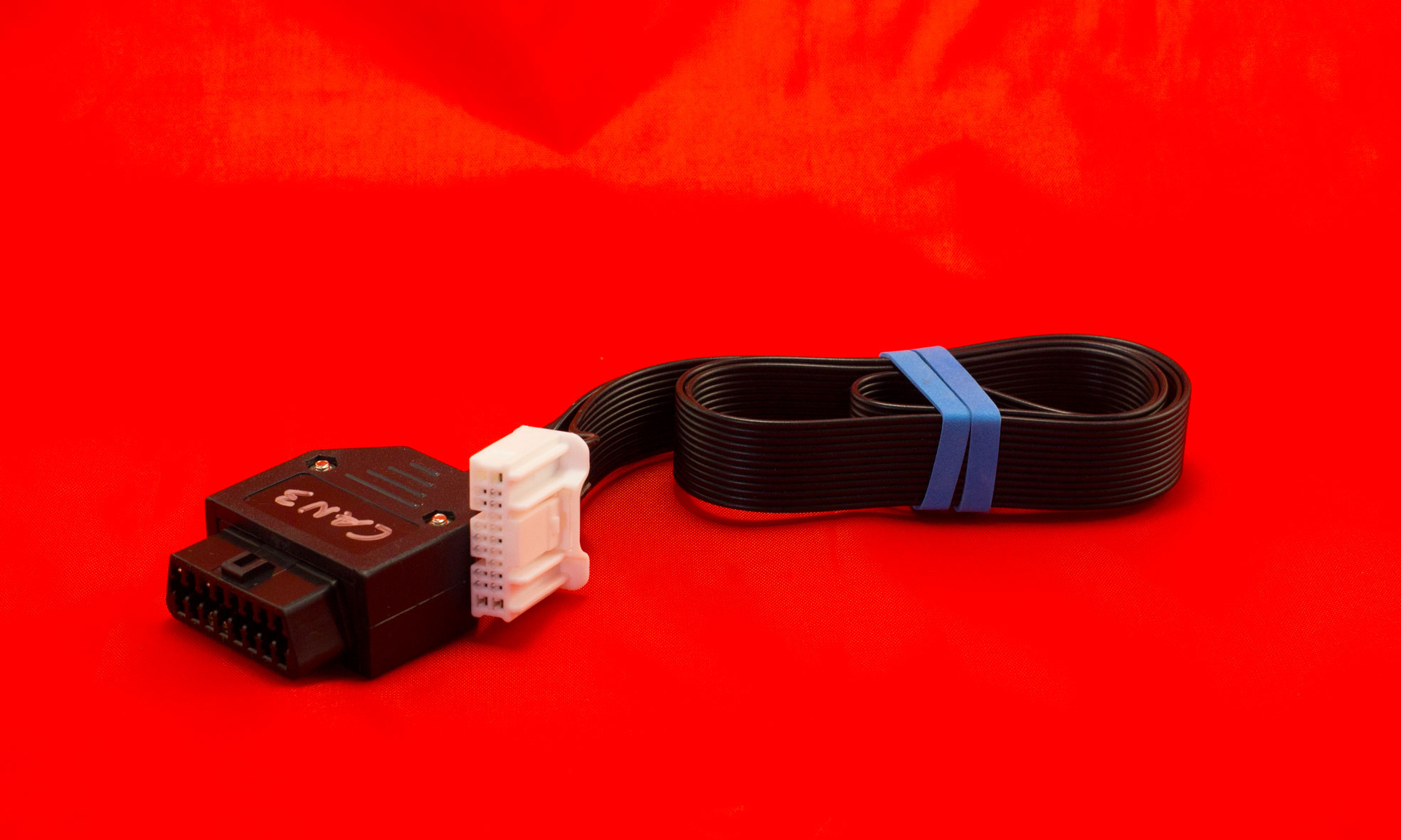

For those that simply want to get up and running without any extra work this is the best option. Includes cable with Tesla connector and 1m (~3ft) of black flat noodle cable (designed to fit between the seam of the center console cubby and center display) the other end is an OBD-II connector with pins 6&14 crimped to whichever vehicle bus you desire. This is the perfect cable for those that want to log their cars data using the TM-Spy app (for Android and iOS), simply order the cable configured for CAN3 and you can start logging battery health and other performance metrics out-of-the-box.

This setup is completely removable and doesn’t modify or damage the vehicle in any way. Product comes with a detailed pinout chart and instructions on how to access the diagnostic port (for either the yacht/carpet floor or those with a Tesla center console). Other packages are linked at the bottom of this listing.

Additional information

Weight 0.11 kg
CAN Bus

CAN2 – Body, CAN3 – Powertrain, CAN6 – Chassis

Tech Specs

Length: 1m (~3ft)

No. of Conductors: 12 (all available data lines and 12V power)

Works with: Model S/X (most 2015 or newer models, those with a blue diagnostic connector will work)

Termination Option: OBD-II connector

Works with: TM-Spy (for Android or iOS) in conjunction with suitable Bluetooth or WiFi ODB reader (sold separately), Kvaser Leaflite or similar, CANtact, Canberry, CANdue, CANdue 2, TowerTech CAN Cape, Arduino CAN shields, CANbus Triple, or similar CAN transceiver boards. NOTE: Product comes with an OBD-II plug with pinout made to order, it is the buyers responsibility to handle buying the compatible adaptor/connector for a given product listed above (except the OBD-II readers used with the ™-Spy app).
